ALPHA

Intelligent capacity

4200 / 5100L

Tank

m 24-44 m 24-39 m 18-36 m 18-36 m

Boom

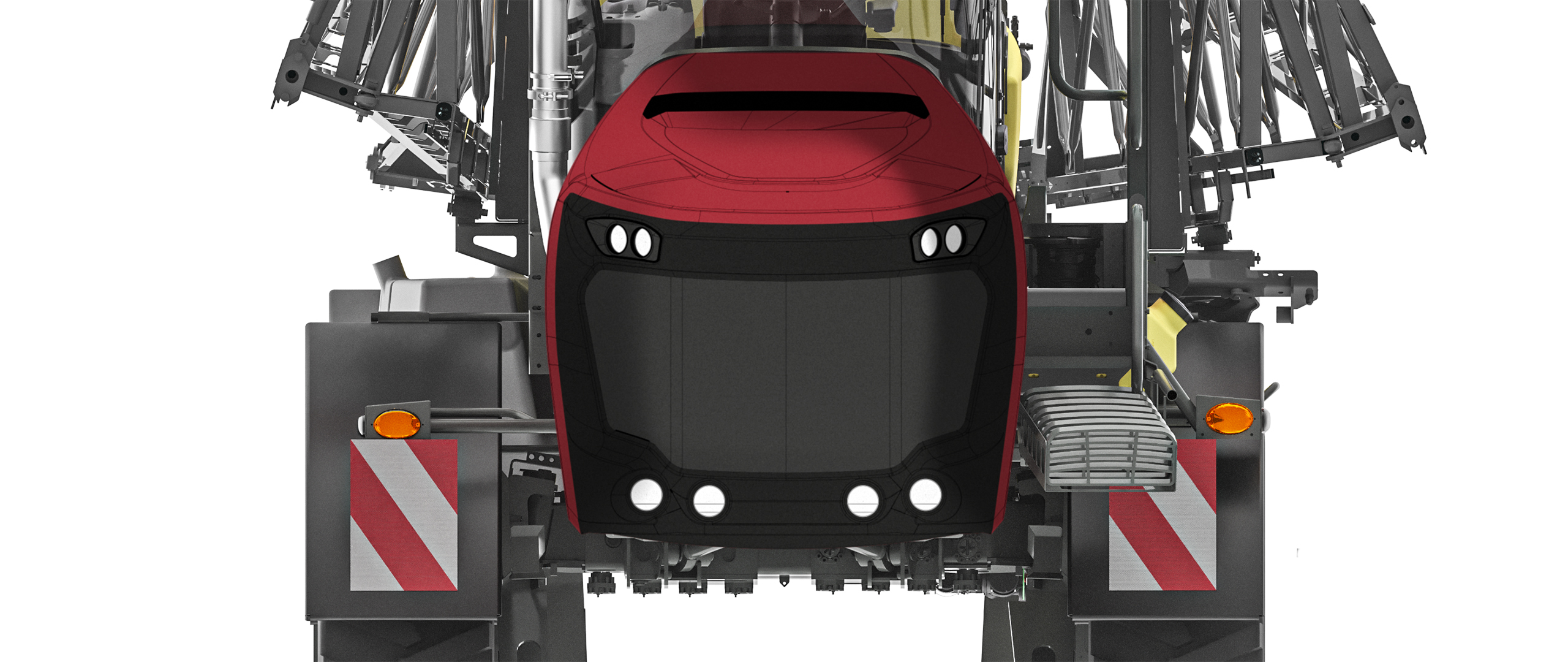

ENGINE

The EcoDrive Engine Our advanced EcoDrive engine management system will give you more power and flexibility for managing torque with less noise. It also reduces fuel consumption by more than 30%. EcoDrive is standard on the ALPHA TITANIUM line and is a great companion with the Deutz 6 engine. Hilly conditions The EcoDrive will maintain a consistent driving speed with comfortable regu

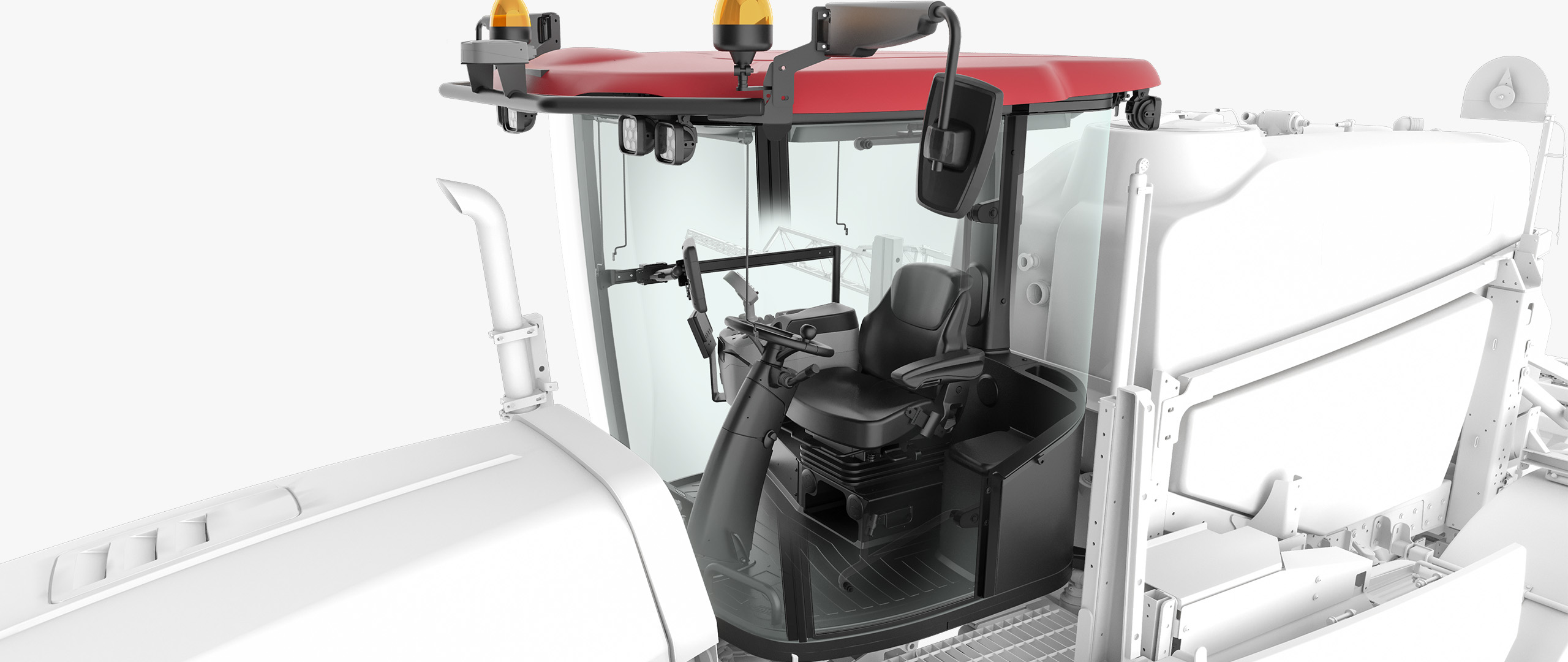

The EvoCab

The EvoCab is designed with performance and driver safety and comfort in mind HARDI’s main focus in developing the state-of-the-art EvoCab has been ergonomics. All features of the spacious cab – from the comfortable seat to the operator-friendly SprayCenter controller – are designed for maximum operator comfort. The unique 3-pillar cab design ensures excellent visibility. Tinted safety

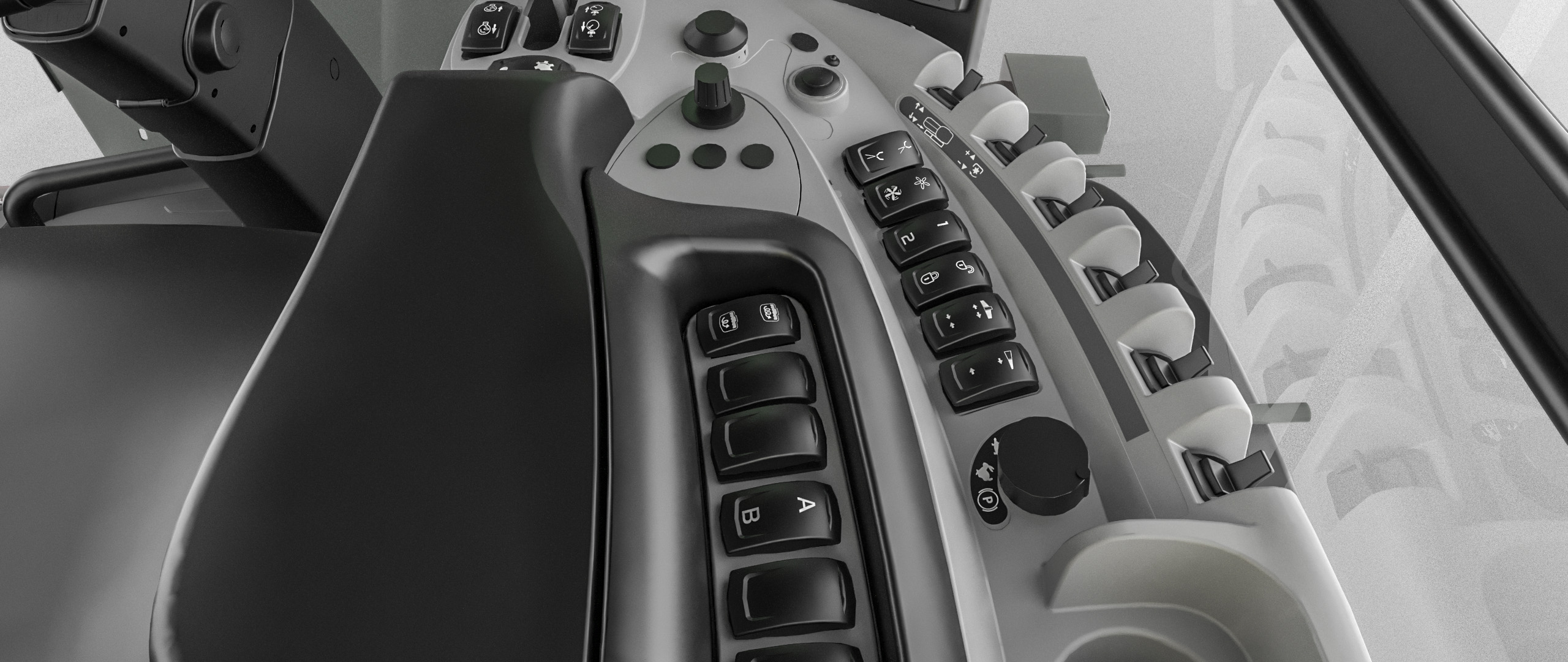

SprayCenter

The ALPHA offers a wide array of customisable functions for optimum spray performance and precision The ALPHA TITANIUM line is one of the most versatile high-capacity self-propelled sprayers on the market. All spray and hydraulic functions are fully controlled from the EvoCab. Primary switch functions are locat- ed within easy reach at the right-hand seat-mounted SprayCenter, while sec

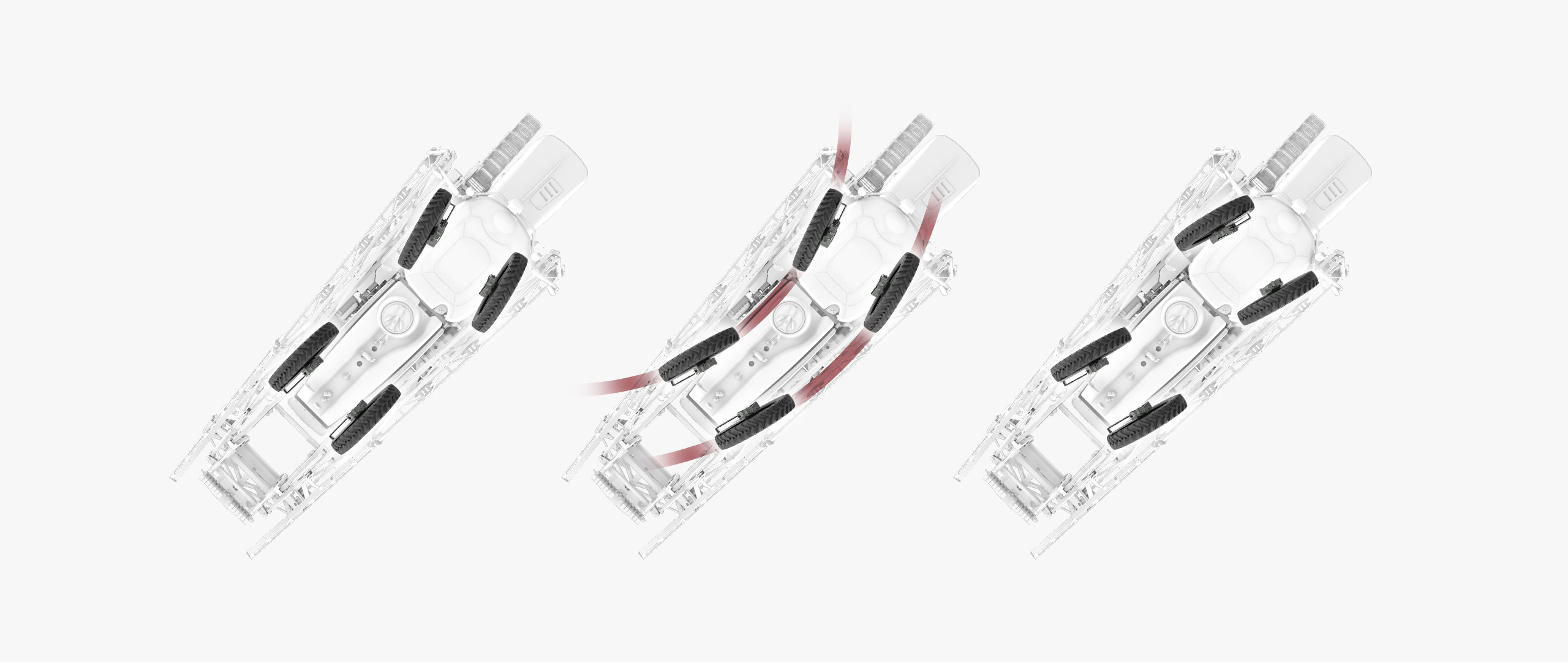

Steering modes

Light, nimble and easy to manoeuvre The ALPHA TITANIUM line has been designed with an effective weight distribution between front and rear axles, with slightly more weight on the front (59% on the front with a TWIN FORCE 30 m boom) to strike a perfect balance between drive-ability and minimal compaction. Precision steering The ALPHA TITANIUM line is equipped with a permanent 4-wheel

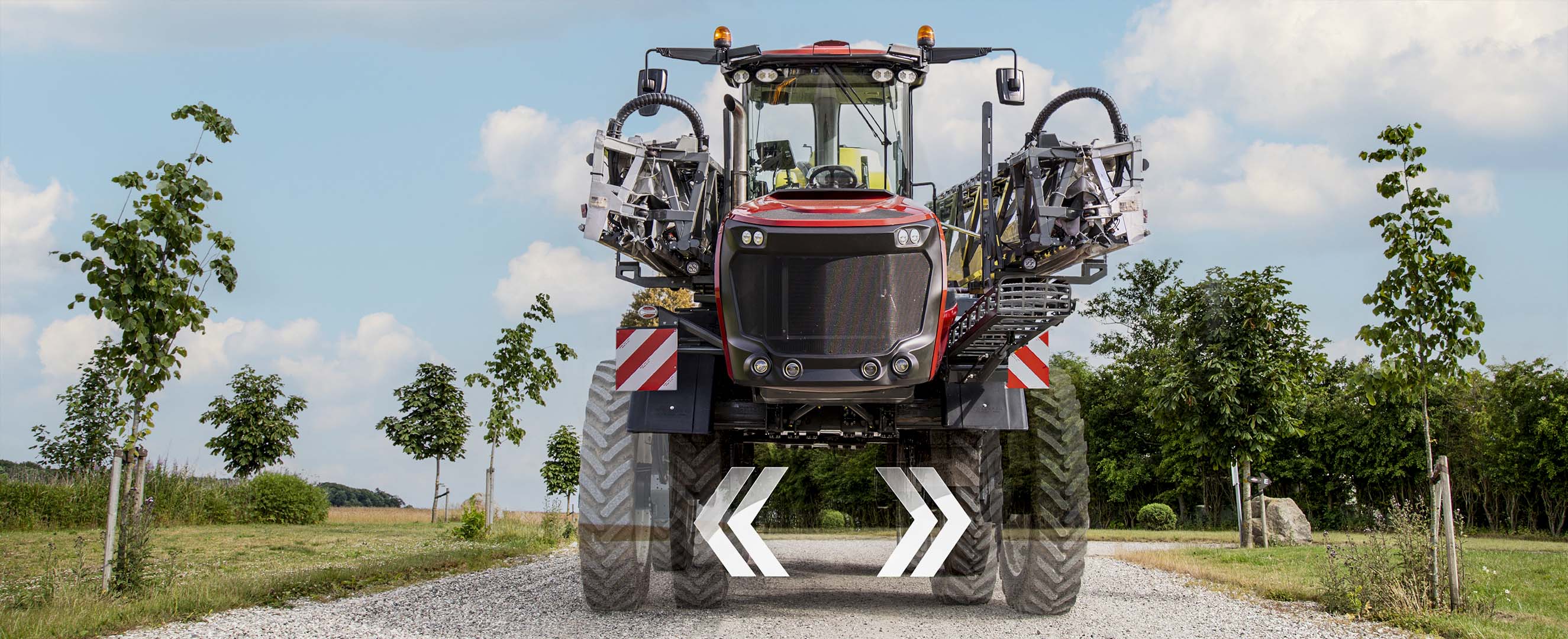

Hydraulic Track Width Adjustment

Flexible track width adjustment on-the-go The ALPHA TITANIUM line offers unparalleled flexibility when it comes to the adjustment of track width. Changing between different tramlines, crops, fields or roads has never been easier with the hydraulic adjustment of track width (depending on tyre dimensions): \t \t Version S 180 to 280 cm \t \t \t Version M 220 to 320 cm \t \

SmartCom Connected

Stay connected to your sprayer with real-time monitoring, GPS tracking, and remote diagnostics through the HARDI SmartCom IoT system.

TurboFiller

Safe, fast and residue-free mixing of plant protection products. The TurboFiller handles even the most difficult-to-mix dry formulations with ease.

DynamicFluid4

The most advanced liquid system for shorter response time and more precise application in the field.

HC 9700 Controller

Intuitive touchscreen controller with full ISOBUS compatibility. Manage all spray functions from one central unit.

See it in action

More to explore

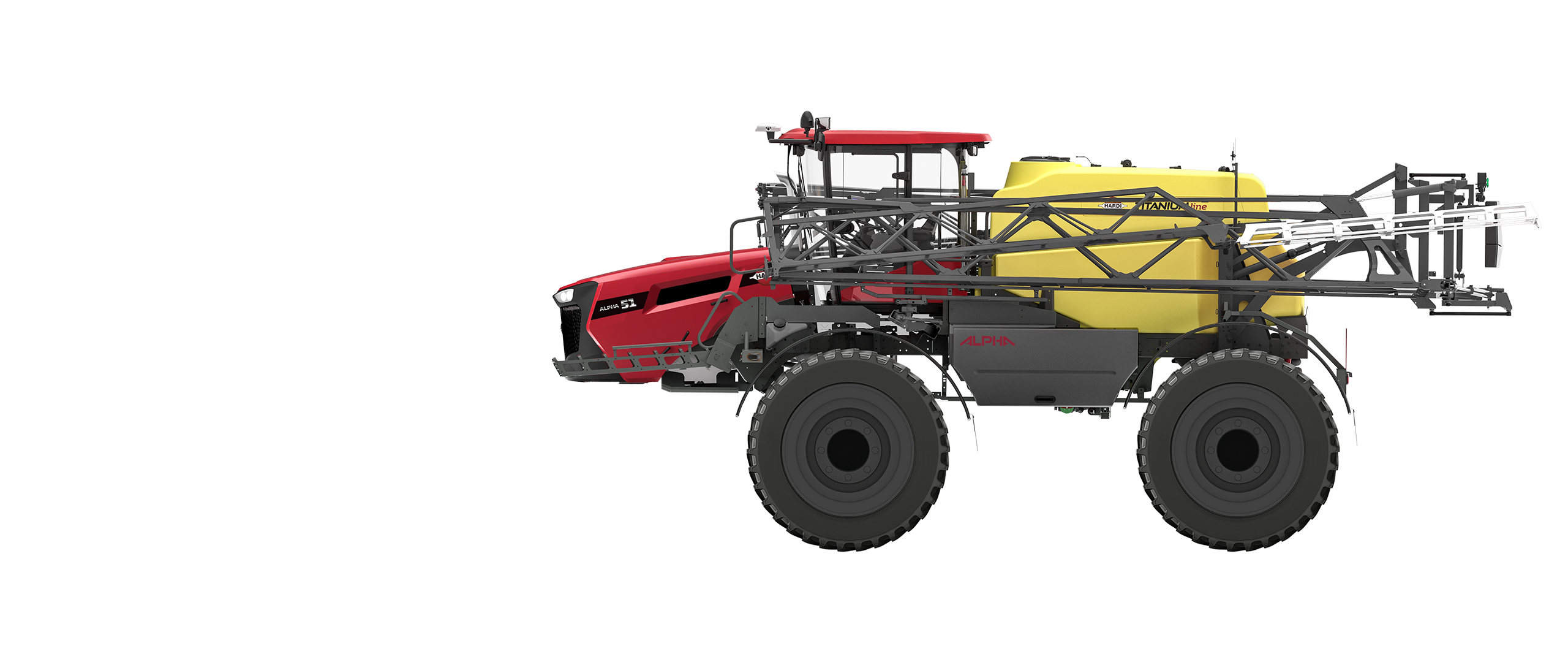

The ALPHA TITANIUM line is made for every spray task

This self-propelled sprayer is optimised for capacity and advanced performance at an affordable price. A range of intelligent features and equipment, such as automatic height control, track width adjustment and floating suspension, guarantees application precision and speed. Everything is controlled from the comfort of the EvoCab. With its state-of-the-art interior, superior visibility and intuitive operator interface, the cab is designed with comfort, productivity and safety in mind

ALPHA up close

1/10

ALPHA

Technical specifications

4200 / 5100L

Tank

m 24-44 m 24-39 m 18-36 m 18-36 m

Boom

Tank4200 / 5100 l

EnginesDeutz 6 cyl. 245 hp / 180 kW (Stage V / Tier 4 final) or \nDeutz 6 cyl. 217 hp / 160 kW (Tier 3a) – depending to country regulation. \nDeutz 6 cyl. 217 hp / 160 kW (Tier 3a) – depending to country regulation.

SCR(selective catalytic reduction and an active

DPF(Diesel Particulate Filter) meeting the European enviromental standards.

Transmission with 3 driving modesComfort, Normal and Power

ControllerHC 9600, HC 9700 or ISOBUS

TurboFillerHigh capacity, easy to operate

Liquid systemDynamicFluid4

Track width\nManual adjustable axle 182-332 cm \nHydraulic adjustable axle 180-280 and 220-320 cm (HTA) \nHydraulic adjustable axle 180-280 and 220-320 cm (HTA)

Booms\nALU boom: 24-44 m \nDELTA FORCE: 24-39 m \nTWIN FORCE: 18-36 m \nTWIN FORCE: 18-36 m

Hilly conditions\nThe EcoDrive will maintain a consistent driving speed with comfortable regulation and a constant low engine speed. For very hilly conditions, an optional powerful transmission can provide 25% to 50% higher torque with DiamondTrack or SAPE. \nThe EcoDrive will maintain a consistent driving speed with comfortable regulation and a constant low engine speed. For very hilly conditions, an optional powerful transmission can provide 25% to 50% higher torque with DiamondTrack or SAPE.

Three driving modes\nThe operator can customise the ALPHA TITANIUM line’s transmission to suit the changing requirements of spraying, using three driving modes \n– Comfort, Normal and Power. \n– Comfort, Normal and Power.

Safety & health\nThe spacious EvoCab is optimised for both safety and comfort. Equipped with an oversized automatic climate control suitable for extreme weather conditions, the cab provides a pleasant, quiet and stress-free work environment. \nThe spacious EvoCab is optimised for both safety and comfort. Equipped with an oversized automatic climate control suitable for extreme weather conditions, the cab provides a pleasant, quiet and stress-free work environment.

Comfortable seat\nTo provide the highest level of comfort – even when spending long hours in the field in rough conditions – the EvoCab is equipped with a fully adjustable suspension seat. \nTo provide the highest level of comfort – even when spending long hours in the field in rough conditions – the EvoCab is equipped with a fully adjustable suspension seat.

Intelligent spray performance\nThe SprayCenter also combines the fingertip-controlled multifunction HARDI Grip joystick with an ISOBUS HC 9700 12,1” touch-screen controller. By integrating all important information on one screen – with split-screen mode allowing for simultaneous viewing of different aspects of spraying or other concurrent operations – the operator is ensured a complete overview at all times. \nThe SprayCenter also combines the fingertip-controlled multifunction HARDI Grip joystick with an ISOBUS HC 9700 12,1” touch-screen controller. By integrating all important information on one screen – with split-screen mode allowing for simultaneous viewing of different aspects of spraying or other concurrent operations – the operator is ensured a complete overview at all times.

Precision steering\nThe ALPHA TITANIUM line is equipped with a permanent 4-wheel drive. Steering modes include 2-wheel, 4-wheel and crab steering for high manoeuvrability, even on sloping terrain, in wet conditions or to protect sensitive soils. Transitions between steering modes are easily managed from the cabin. Re-alignment of the rear wheels is automatic. A lock is activated for road travel. On top of this, the ALPHA TITANIUM line is designed for a very small turning radius, down to 4.62 m for 4200 and 5.56 m for 5100. \nThe ALPHA TITANIUM line is equipped with a permanent 4-wheel drive. Steering modes include 2-wheel, 4-wheel and crab steering for high manoeuvrability, even on sloping terrain, in wet conditions or to protect sensitive soils. Transitions between steering modes are easily managed from the cabin. Re-alignment of the rear wheels is automatic. A lock is activated for road travel. On top of this, the ALPHA TITANIUM line is designed for a very small turning radius, down to 4.62 m for 4200 and 5.56 m for 5100.

Following mudguards on high clearance\nOn high clearance models, near-wheel mudguard can be offered. The mudguards follow the wheels when turning and keeping the nozzles clean in dry and wet conditions. This option requires a minimum track width of 2,25 m. \nOn high clearance models, near-wheel mudguard can be offered. The mudguards follow the wheels when turning and keeping the nozzles clean in dry and wet conditions. This option requires a minimum track width of 2,25 m.

(A)Total length*, m

(B)Total height*, cm

(C)Width with ALU boom (24-44 m), m

(D)Track width manual sliding axle** (380/90 R46), cm

(E)Wheel base, cm

(F)Clearance (380/90 R46), cm
