Nozzles
The right nozzle for every crop and condition. HARDI ISO nozzles deliver precision and reliability.

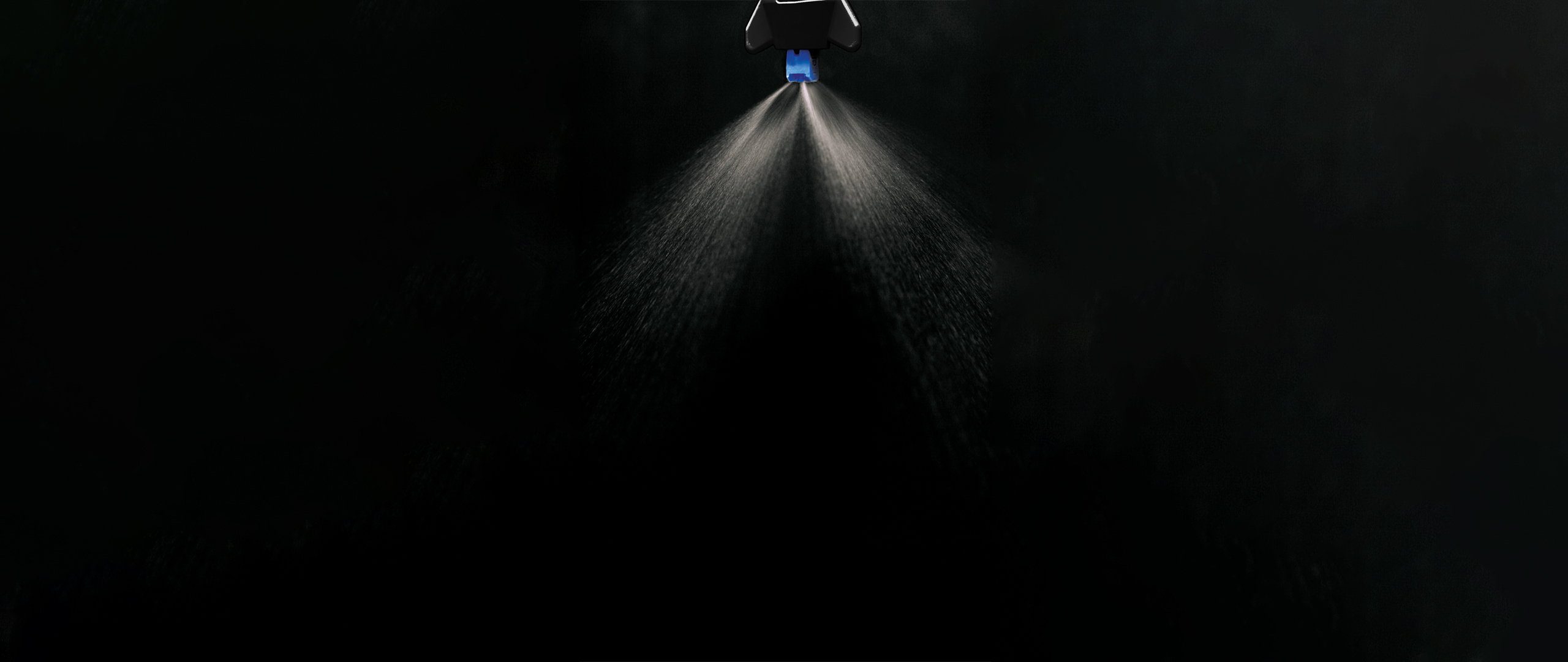

HARDI ISO Nozzles
HARDI ISO LD-110 LOWDRIFT nozzles Minimise Drift and maximise spray efficiency LOWDRIFT nozzles are recommended when optimum spraying conditions cannot be achieved (risk of drift) and spraying cannot be postponed. This nozzle will give you excellent and uniform liquid distribution at boom heights from 35 to 70 cm (50 cm recommended to take care of uneven terrain or boom movements) \t ISO: Flow, colour and outer dimensions \t Working pressure: 1.5 to 5 bar \t SYNTAL: Pre

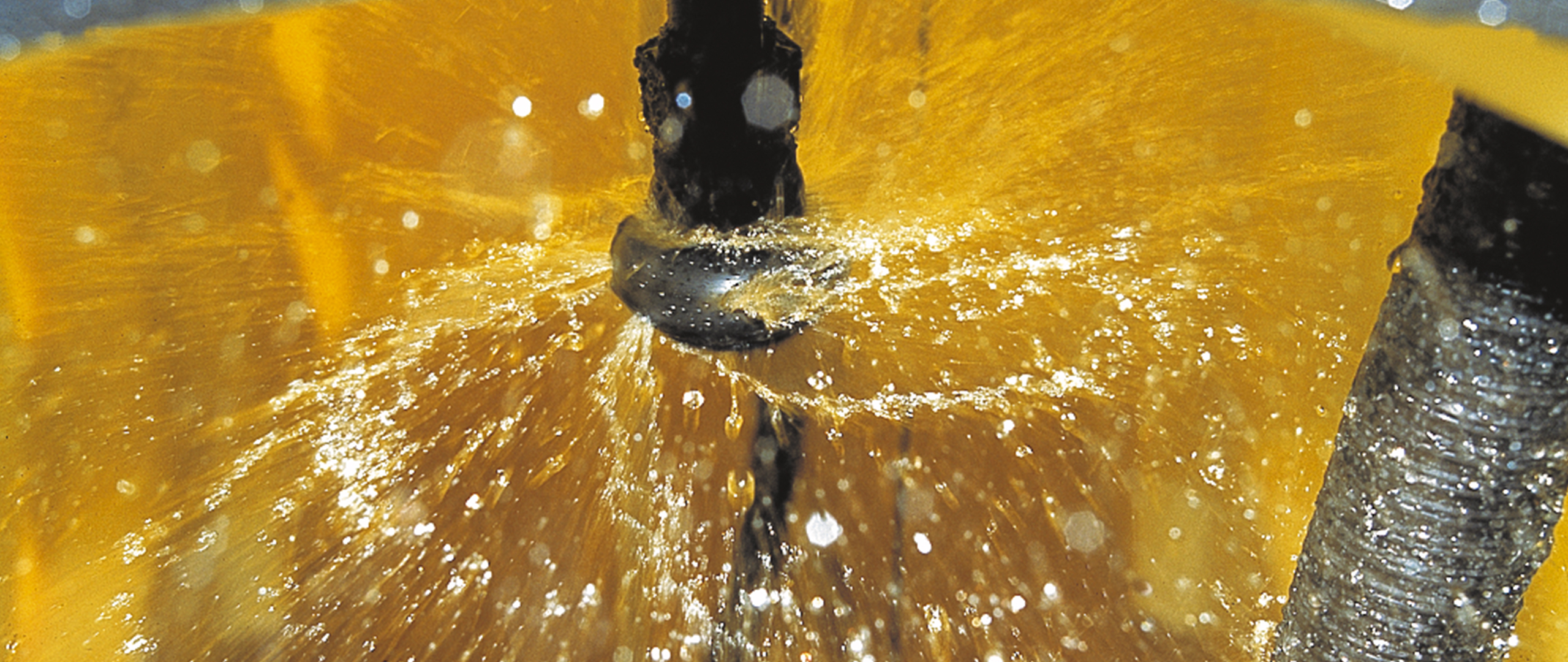

Special nozzles
4665 65° Flat spray nozzles This nozzle provides an elliptical spray pattern (FlatFan) with a 65° angle. A uniform distribution is obtained, with correct overlap between spray patterns from adjacent nozzles. This nozzle has additional applications for industrial purposes. 4625 25° Flat spray nozzles This nozzle provides an elliptical spray pattern (FLATFAN) with a 25° angle. The narrow spray angle results in a high impact spray, which is well suited for cleanin
HARDI ISO Nozzles
HARDI ISO LD-110 LOWDRIFT nozzles Minimise Drift and maximise spray efficiency LOWDRIFT nozzles are recommended when optimum spraying conditions cannot be achieved (risk of drift) and spraying cannot be postponed. This nozzle will give you excellent and uniform liquid distribution at boom heights from 35 to 70 cm (50 cm recommended to take care of uneven terrain or boom movements) \t ISO: Flow, colour and outer dimensions \t Working pressure: 1.5 to 5 bar \t SYNTAL: Pre

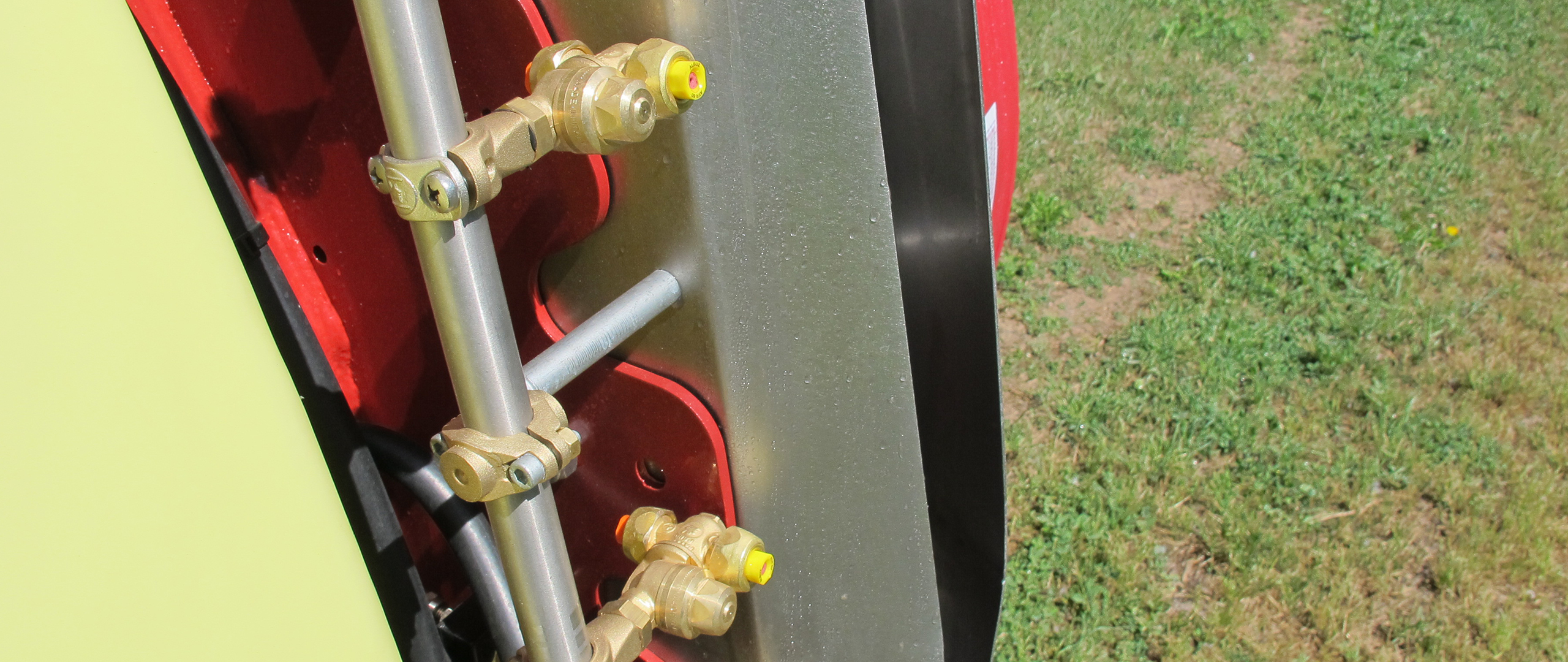

Orchard spraying nozzles
HARDI 1299 Hollow cone nozzles Orchard spraying These nozzles are superior in fine droplet delivery for optimal coverage of plant protection compounds. The high durability of the ceramic material makes this nozzle extensively used in orchard / mistblower applications at high working pressure or when applying abrasive materials. Useful on droplegs for under leaf spraying where turbulence is required for good coverage. Also used on handheld sprayers for insecticide and fungicide appl

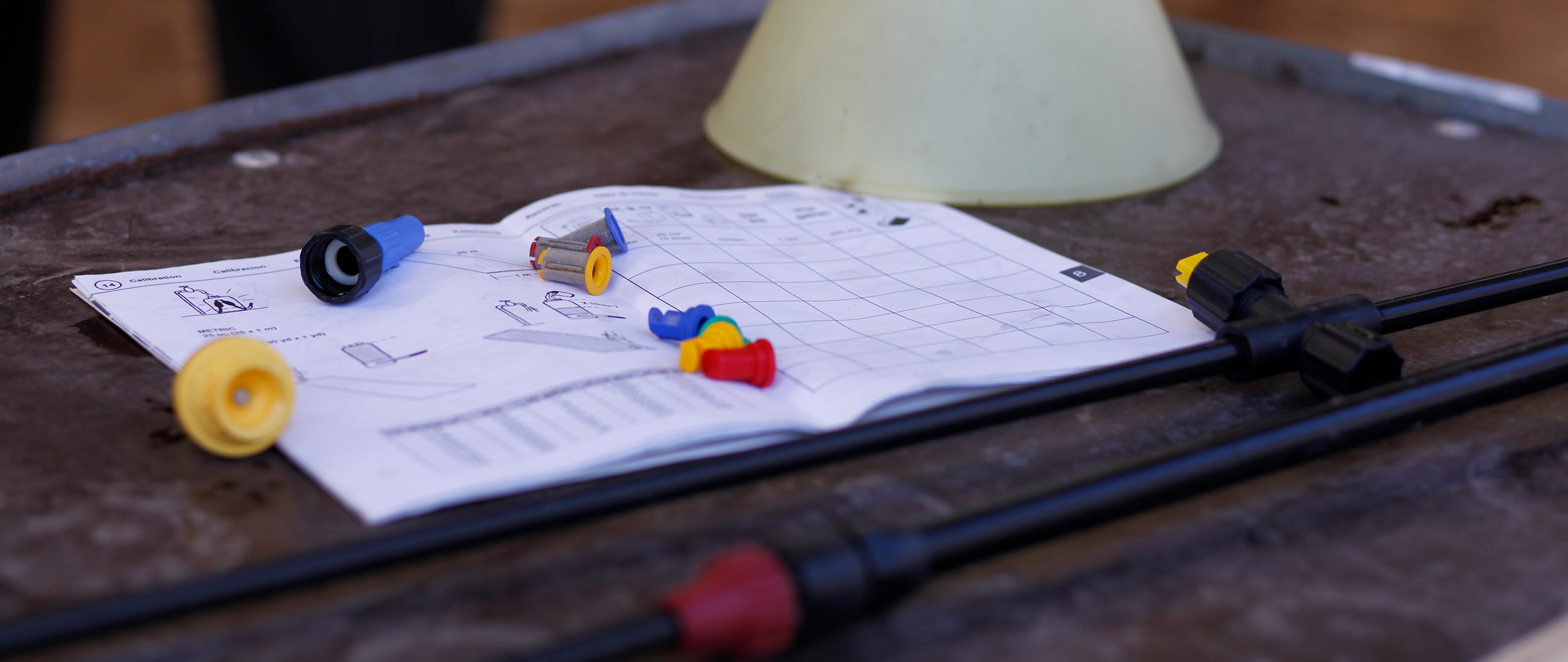

Nozzles – Hand-operated sprayers
HC – Hollow cone nozzles This nozzle is designed for knapsack sprayers. The restrictor and the nozzles are clicked together to avoid losing parts when taken apart for cleaning. HARDI REFLEX nozzles These nozzles are designed so the application volume is the same for all sizes at 1 bar and a normal walking speed (1 m/s), only the spray width changes. Adjustable nozzles These nozzles can be used on knapsack sprayers or spray guns, where you want to change the characteristic
More to explore
Nozzles from HARDI
Nozzles from HARDI are precise, dependable and accountable.
HARDI DUOCAP
Calibration If two ISO nozzles of the same size are used, they will apply the same volume as one ISO nozzle of the double size (use the application table of the double sized nozzle). If two nozzles of different sizes are used, the I/min at the chosen pressure for both nozzles must be added together, and the table below can be used to find the application volume. If you're looking for superior penetration into dense crops like Potatoes and Soybeans, HARDI DUOCAP with two MINIDR
HARDI ISO F 80
Specifications: \t ISO: flow, colour and outer dimensions \t Spray angle: 80° \t Working pressure : 1.5 to 5 bar \t SYNTAL: Precision moulded thermoplastic \t CERAMIC: Extremely high durability For use in cotton, sugar cane, sugar beets, etc. The 80° nozzles can be fitted on HARDI sprayers using the ISO / INJET cap. HARDI ISO F 80 FLAT FAN nozzles With an 80° spray angle, HARDI FLAT FAN nozzle offers exceptional coverage and reduced drift
HARDI ISO F-11O
Specifications: \t ISO: flow, colour and outer dimensions \t Working pressure: 1.5 to 5 bar \t Recommended for TWIN sprayers \t SYNTAL: Precision moulded thermoplastic \t CERAMIC: Extremely high durability \t COLOR TIPS for safe and easy handling The HARDI ISO F-110 nozzles are also available as S-Tip variants. This means that you can now enjoy complete flexibility when it comes to choosing the right nozzles, regardless of the sprayer brand you own. The S-T
HARDI ISO LD-110
Specifications: \t ISO: Flow, colour and outer dimensions \t Working pressure: 1.5 to 5 bar \t SYNTAL: Precision moulded thermoplastic \t CERAMIC: Extremely high durability \t COLOR TIPS for safe and easy handling \t Restrictor designed for minimum chemical residues The HARDI ISO LD-110 nozzles are also available as S-Tip variants. This means that you can now enjoy complete flexibility when it comes to choosing the right nozzles, regardless of the sprayer brand y
HARDI ISO MINIDRIFT
Specifications: \t Working pressure: 1 to 6 bar \t ISO: flow, colours, sizes and nomenclature \t Application rates from 60 to 430 l/ha (at 8 km/h) \t SYNTAL: precision moulded thermoplastic \t Air inclusion nozzles \t Two big air inlets reduce the risk of clogging \t Compact design reduces impact damage \t Meets full ISO specifications The HARDI ISO MINIDRIFT nozzles are also available as S-Tip variants. This means that you can now enjoy complete flexibility
HARDI ISO NANODRIFT
Specifications: \t Working pressure: 1.0 to 6.0 bar \t ISO: flow, colours, sizes and nomenclature \t Application rates from 85 to 850 l/ha (at 8 km/h) \t SYNTAL: Precision-moulded thermoplastic The HARDI ISO NANODRIFT nozzles are also available as S-Tip variants. This means that you can now enjoy complete flexibility when it comes to choosing the right nozzles, regardless of the sprayer brand you own. The S-Tip nozzles fit most sprayers available in the market. JK
HARDI ISO MINIDRIFT DUO
Specifications: \t Working pressure: 1.5 to 6 bar ISO flow, colours, sizes and nomenclature \t 30° forward and backward angle \t Application rates from 125 to 420 l/ha (at 8 km/h) \t SYNTAL: precision moulded thermoplastic The HARDI ISO MINIDRIFT DUO nozzles are also available as S-Tip variants. This means that you can now enjoy complete flexibility when it comes to choosing the right nozzles, regardless of the sprayer brand you own. The S-Tip nozzles fit most sp
HARDI QUINTASTREAM Nozzles
Specifications: \t The fastest way to convert your sprayer into a high-precision fertilizer applicator \t 5 solid streams that minimise crop scorching \t Particularly important for wide booms at fast speeds \t ISO standard for easy calibration \t Turn and Clean the key for restrictor removal \t Boom height 35-100 cm The HARDI QUINTASTREAM nozzles are also available as S-Tip variants. This means that you can now enjoy complete flexibility when it comes to choosing
Reducing drift at higher volume rates with new HARDI NANODRIFT nozzles
90% drift reduction according to German tests The newly developed HARDI NANODRIFT air injection nozzle is a revolutionary design, with test results by the JKI institute in Germany showing a 90% drift reduction. By dramatically reducing drift at higher wind speeds, HARDI NANODRIFT can significantly reduce environmental impact. Reducing the need for changing nozzles By working at a pressure range from 1.0 – 6.0 bar, the nozzle allows the farmer to operate within a wide range of spra
