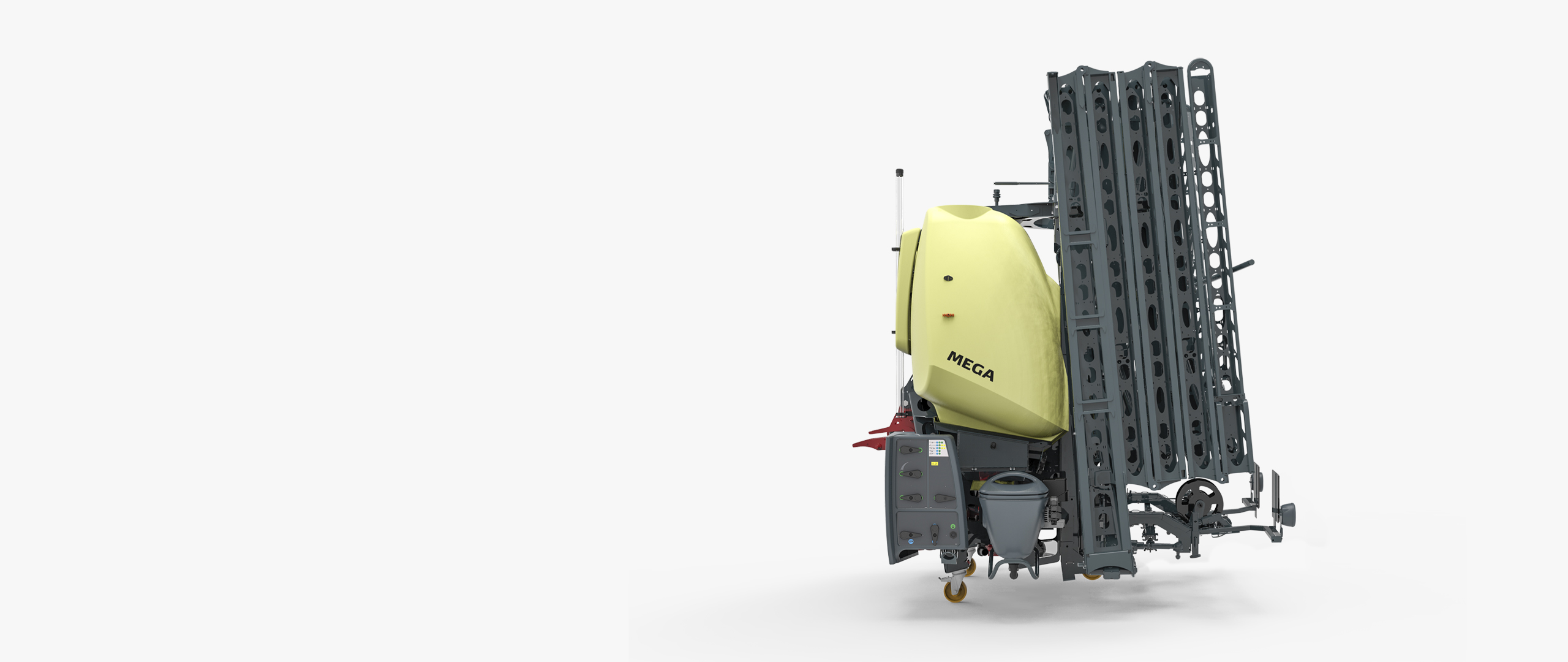

MEGA

More capacity and intelligence

1200 / 1500 / 1800 / 2200L

Tank

m m 15 18 m

Boom

AirRide Suspension for impressive comfort

For your unparalleled comfort, both in the field and on the road, the lower linkage-mounted AirRide suspension is permanently active. This increases the work rate by isolating the shocks from the tractor, providing a more stable platform to spray from, thus improving boom stability and allowing for increased forward speed. Time spent away from the field can also be reduced due to the higher road transport speeds allowed by AirRide and its superior operator comfort.

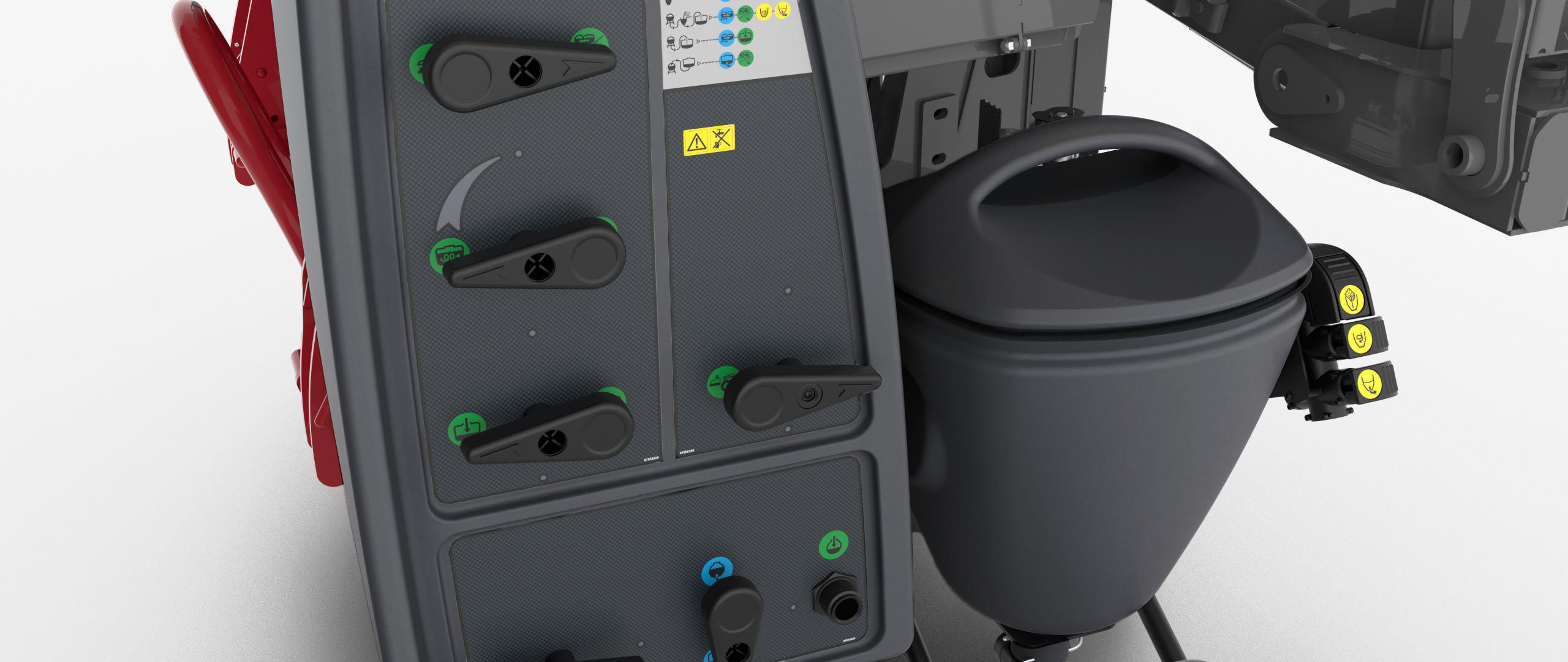

WorkZone

Intuitive manifold The liquid system is easily controlled from the centrally located manifold. Its colour-coded and logically positioned valve controls make it easy to start up and operate, thereby reducing workload and the risk of making errors. Easy access to the tank lid The lid is located close to the ladder, on the right side, allowing easy inspection of the tank. Additionally, the

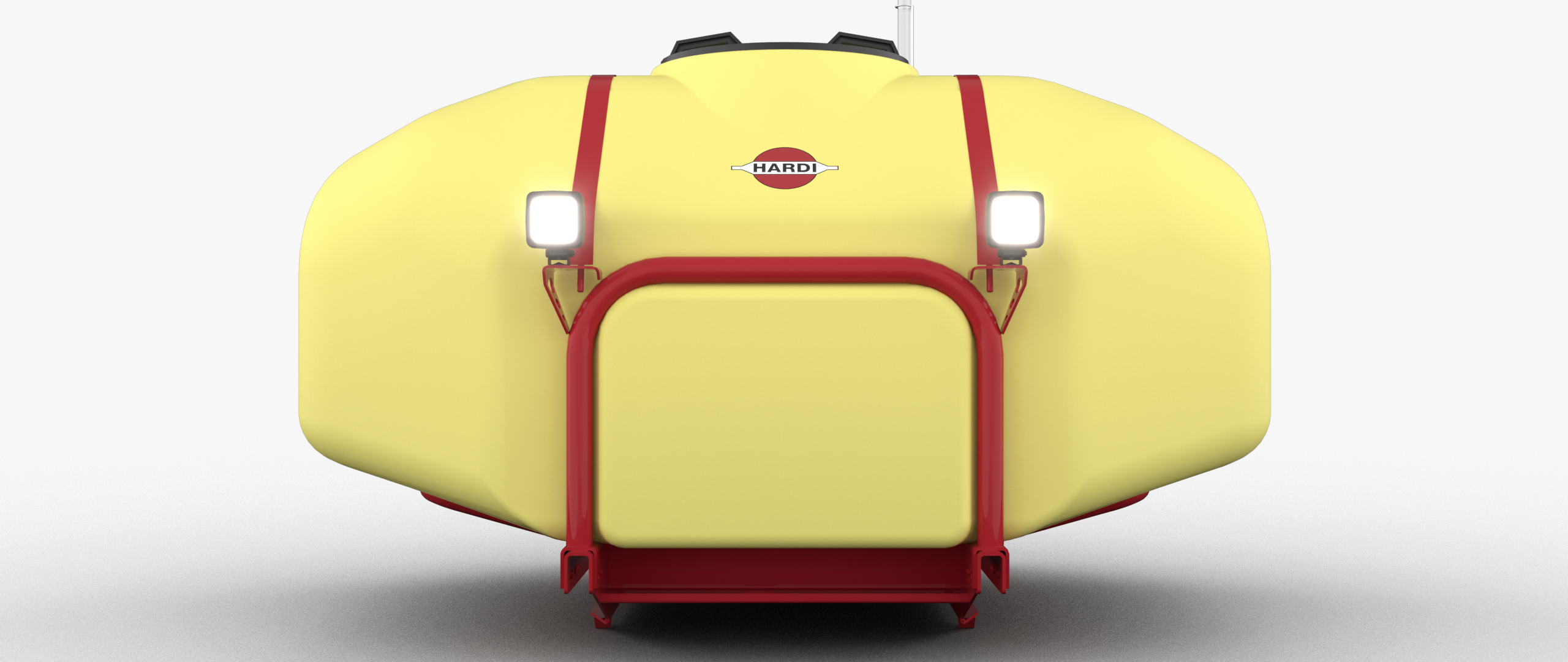

FrontTank

HARDI FrontTank The HARDI front tank will give you extra options for your spray job, either as a nurse tank for bringing more water into the field, or combined with the main tank as one functioning unit. The tank is made of high-impact polyethylene and has a liquid-free level indicator, located on top of the tank, for easy visibility from the driver's seat. The linkage is made for

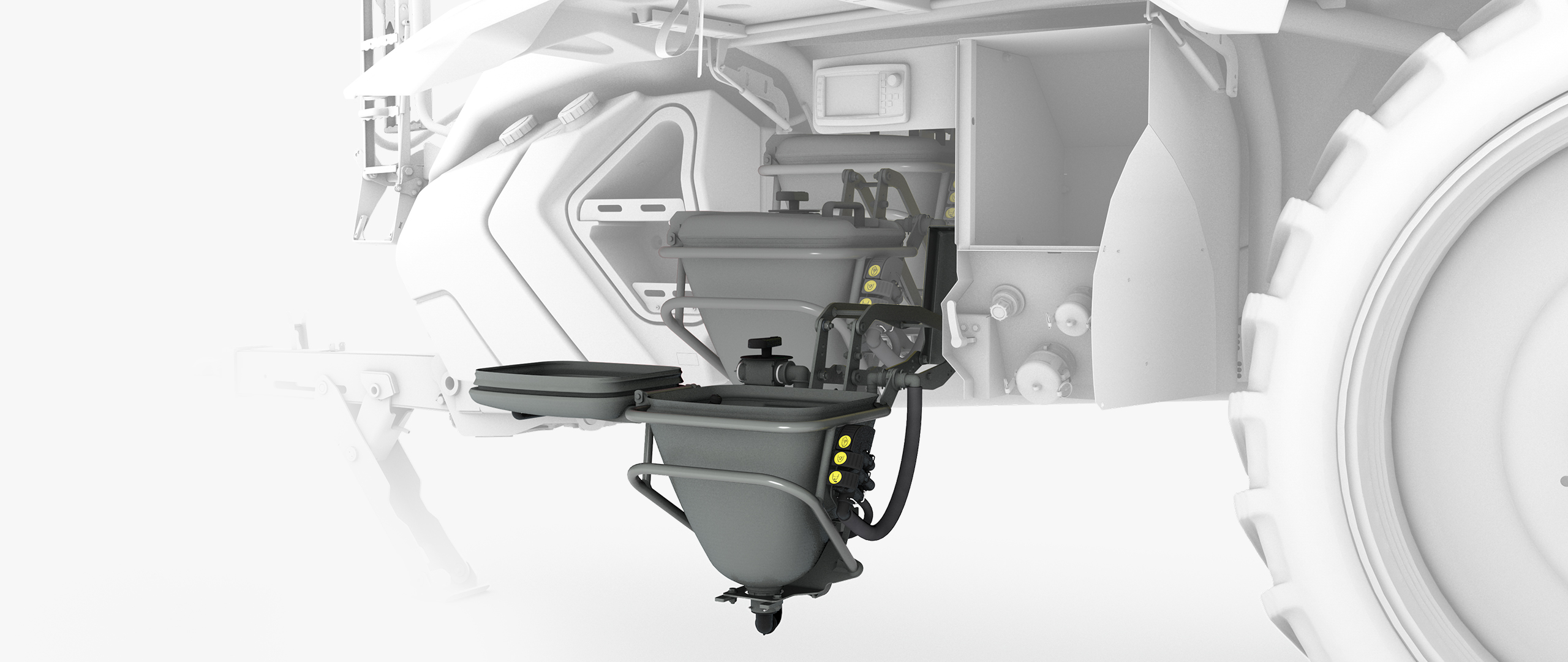

TurboFiller

Safe, fast and residue-free mixing of plant protection products. The TurboFiller handles even the most difficult-to-mix dry formulations with ease.

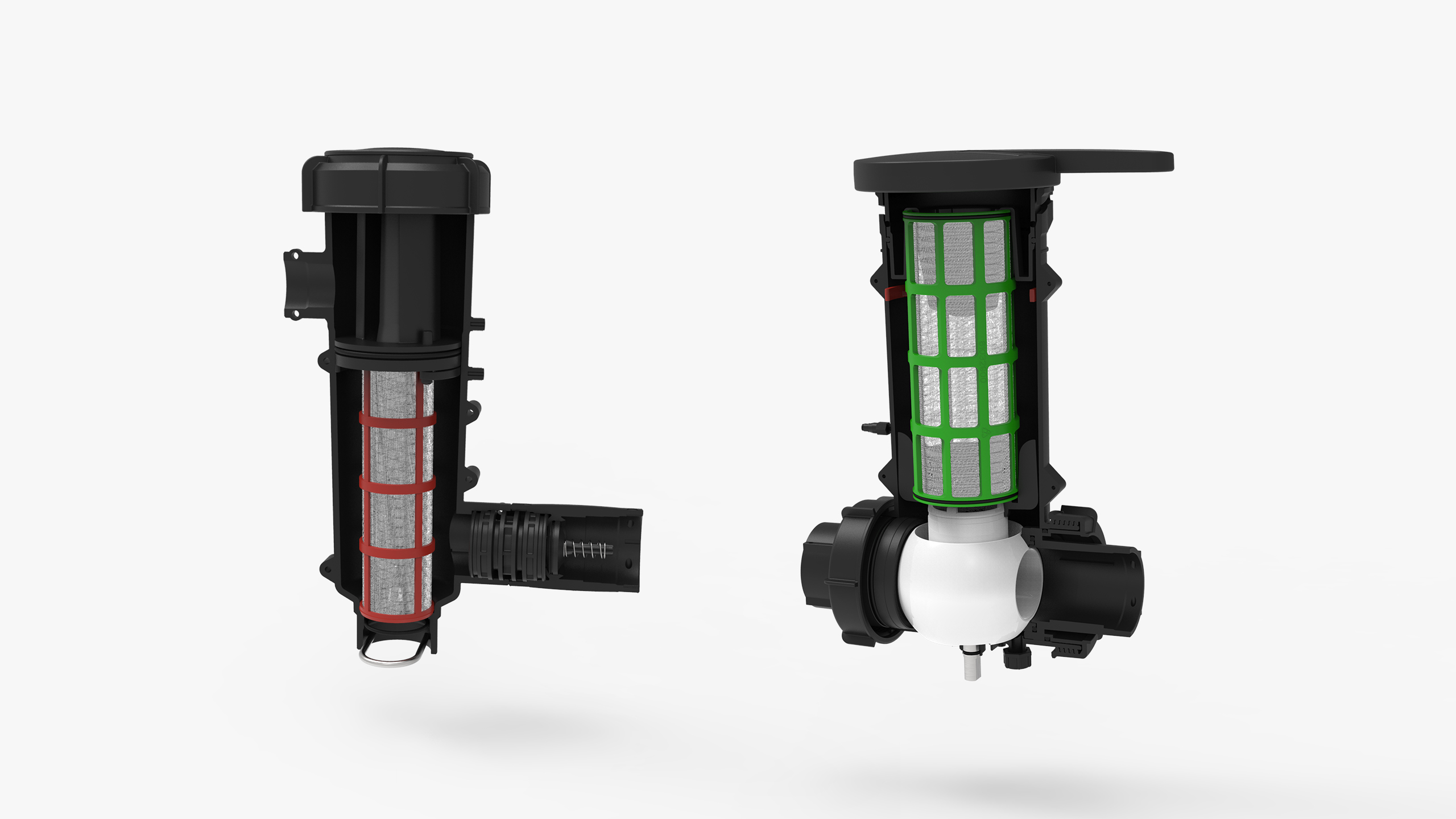

Filtration System

Comprehensive multi-stage filtration system to protect nozzles and ensure consistent spray quality throughout the day.

See it in action

More to explore

Modern application techniques

The MEGA PRO FORCE introduces modern application techniques such as PulseSystem, and the fast reacting ActiveAir into the lift-mounted segment. The new PRO FORCE boom features a centre-section suspension concept designed to deliver a high-performance boom ride, even at higher driving speeds. Capable of spraying at increased speeds and carrying up to 2,200 litres, the MEGA matches the productivity of trailed sprayers while offering unmatched ease of operation and exceptional performance.

The New MEGA PRO FORCE boom

In the face of challenging field conditions, application precision is critical. That is why the HARDI MEGA is now available with the new PRO FORCE booms, which range from 15 to 28 metres and fold vertically for optimal convenience.

MEGA up close

1/5

MEGA

Technical specifications

1200 / 1500 / 1800 / 2200L

Tank

m m 15 18 m

Boom

Tank1200 / 1500 / 1800 / 2200 l

ControllerHC 8700, HC 9700 or ISOBUS

TurboFillerHigh capacity, easy to operate

Liquid systemDynamicFluid4

ChassisHigh-tensile steel chassis

PRO FORCEhigh stability and performance, 15, 18, 21, 24, 27, 28 m

PRO boomsCompact, vertically folded booms 15, 18 m

Intuitive manifold\nThe liquid system is easily controlled from the centrally located manifold. Its colour-coded and logically positioned valve controls make it easy to start up and operate, thereby reducing workload and the risk of making errors. \nThe liquid system is easily controlled from the centrally located manifold. Its colour-coded and logically positioned valve controls make it easy to start up and operate, thereby reducing workload and the risk of making errors.

Easy access to the tank lid\nThe lid is located close to the ladder, on the right side, allowing easy inspection of the tank. Additionally, the tank is designed to give the operator excellent visibility of all tank walls. \nThe lid is located close to the ladder, on the right side, allowing easy inspection of the tank. Additionally, the tank is designed to give the operator excellent visibility of all tank walls.

Excellent service access\nTo aid service accessibility, the majority of electronic components and connections are located in a box behind the main tank, well protected from chemicals and the elements. \nTo aid service accessibility, the majority of electronic components and connections are located in a box behind the main tank, well protected from chemicals and the elements.

Powerful agitation\nTo avoid blind spots in the tank, Venturi nozzles increase the input for agitation by approximately four times. This agitation concept has proven highly efficient for liquids and powders. \nTo avoid blind spots in the tank, Venturi nozzles increase the input for agitation by approximately four times. This agitation concept has proven highly efficient for liquids and powders.

Easy access to filters\nTo ensure easy reach from the ground, the EasyClean suction filter is placed on the right side of the machine and the Cyclone pressure filter on the left. \nTo ensure easy reach from the ground, the EasyClean suction filter is placed on the right side of the machine and the Cyclone pressure filter on the left.

Protected placement of gauges\nWith excellent visibility from the tractor, the pressure gauge is well protected mounted at the front of the sprayer as integrated components of the CleanWater tank. \n \n \n

Nurse tank solution\nThe FrontTank and frame can be used as a nurse tank solution. In the field, the water from the front tank can be sucked into the main tank, new chemicals can be added, and the spray job can continue without having to drive back to the filling station. \nThe FrontTank and frame can be used as a nurse tank solution. In the field, the water from the front tank can be sucked into the main tank, new chemicals can be added, and the spray job can continue without having to drive back to the filling station.

Chemical tank solution\nBy adding an agitation pump kit and an electric valve kit, the front tank can be used as a separate chemical tank. Thus, the operator can choose – from the comfort of the driver's seat – whether he wants to use the spray solution from the front tank or from the main tank. \nBy adding an agitation pump kit and an electric valve kit, the front tank can be used as a separate chemical tank. Thus, the operator can choose – from the comfort of the driver's seat – whether he wants to use the spray solution from the front tank or from the main tank.

L= Total length in cm&emsp;

W= Maximum transport width in cm&emsp;

H= Total height in cm
